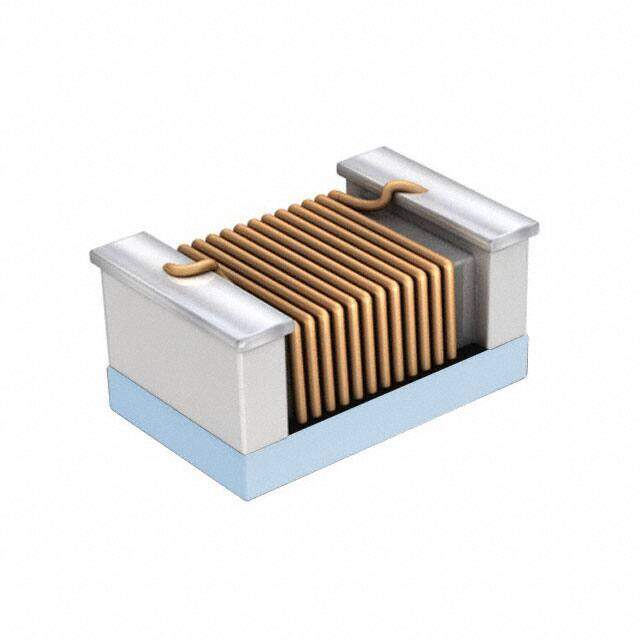

S0402-2N2J3C

API Delevan Inc.
RoHS
/
Package 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description Non-RoHS Compliant Wirewound Active ONE SURFACE Fixed Inductor -55C~125C 8.5GHz 90mOhm Max 2.2nH
PDF
/
Inventory: 5932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 0.030 0.76mm

Technical

Rated Current-Max 0.95A
Inductance Frequency - Test 250MHz
Quality Factor-Min (at L-nom) 18
Q @ Freq 18 @ 250MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 8.5GHz
DC Resistance (DCR) 90mOhm Max
Test Frequency 250MHz
Inductance 2.2nH
Current Rating 950mA
Construction Rectangular
Number of Functions 1
Shielding Unshielded
Type Wirewound
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Tolerance ±5%
Size / Dimension 0.043Lx0.025W 1.09mmx0.64mm
Series S0402
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Alumina
Terminal Shape ONE SURFACE
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
