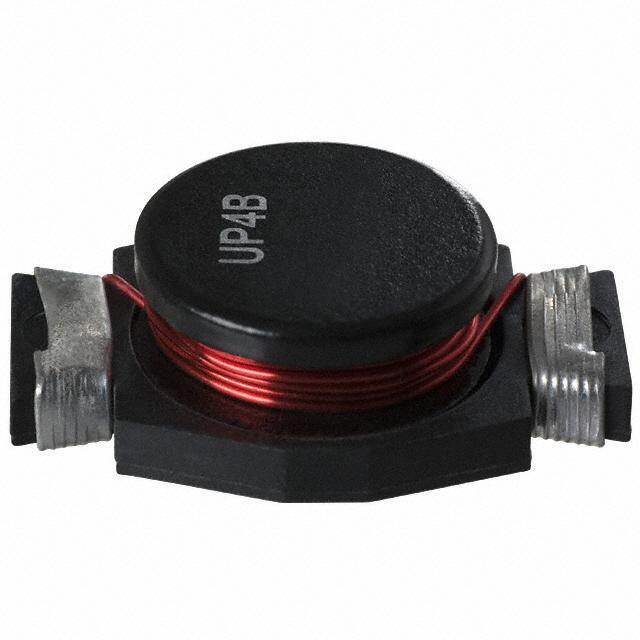

UP4B-221
RoHS
/
Package SMD/SMT
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND (Type) Inductor 85C 100kHz 357.1mOhm 220muH
PDF
/
Inventory: 3956
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SMD/SMT
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Cut Tape (CT)
Published 2002
Tolerance 20%
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Reach Compliance Code unknown
Current Rating 1.4A
Inductance 220 μH
Test Frequency 100kHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 2.4A
DC Resistance (DCR) - Parallel 357.1mOhm
Inductance-Nom (L) 220 μH
Dimensions
Height 7.8486mm
Length 22.098mm
Width 14.986mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
