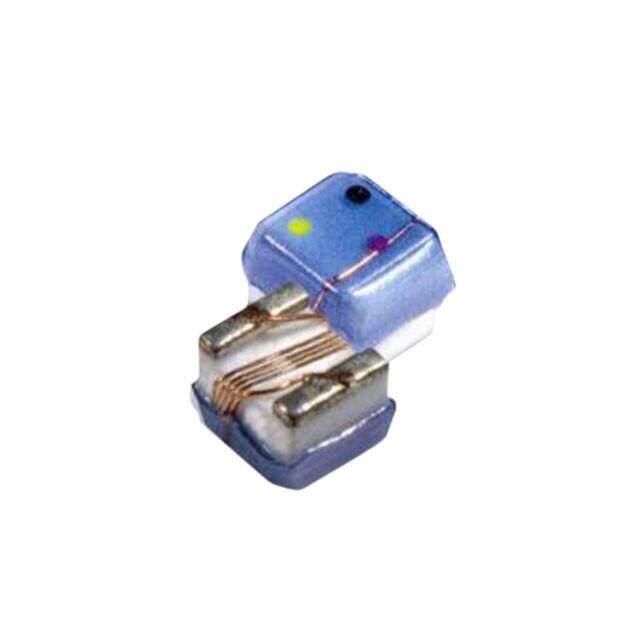

BWCS001207072N2B00
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF INDUCTOR WW
PDF
/
Buying Options
Total Price: USD $0.15
Unit Price: USD $0.1496
≥1 USD $0.1496
≥10 USD $0.12496
≥100 USD $0.115104
≥500 USD $0.101552
≥1000 USD $0.08888
≥3000 USD $0.084656
Inventory: 1498
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.026 0.66mm
Technical
Inductance Frequency - Test 250MHz
Q @ Freq 19 @ 250MHz
Frequency - Self Resonant 10.8GHz
DC Resistance (DCR) 70mOhm Max
Inductance 2.2nH
Shielding Unshielded
Current Rating (Amps) 960mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.1nH
Size / Dimension 0.047Lx0.028W 1.19mmx0.70mm
Series BWCS
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
