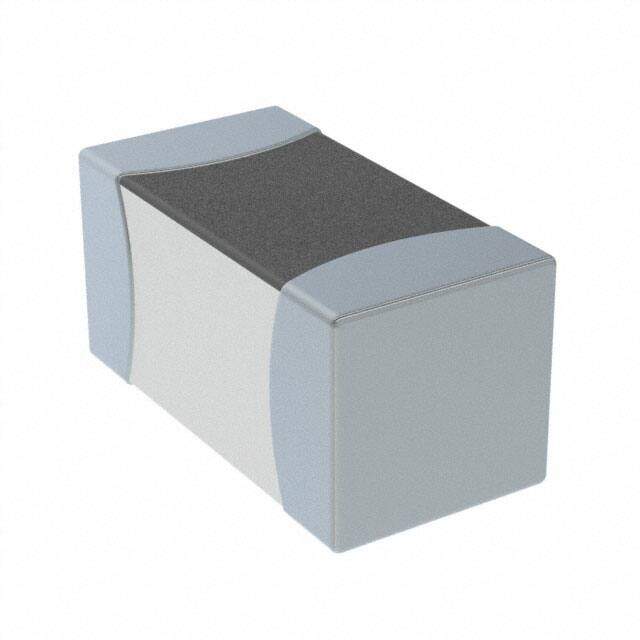

BSCH001608085N6S00
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF INDUCTOR ML
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.088
≥1 USD $0.088
≥10 USD $0.0572
≥100 USD $0.052448
≥500 USD $0.046464
≥1000 USD $0.040568
≥3000 USD $0.03865
Inventory: 117154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.037 0.95mm
Technical
Inductance Frequency - Test 100MHz
Q @ Freq 10 @ 100MHz
Frequency - Self Resonant 4.1GHz
DC Resistance (DCR) 180mOhm Max
Inductance 5.6nH
Shielding Unshielded
Current Rating (Amps) 600mA
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.3nH
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Series BSCH
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ceramic
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
