RoHS
RoHS RoHS compliant
Package 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors

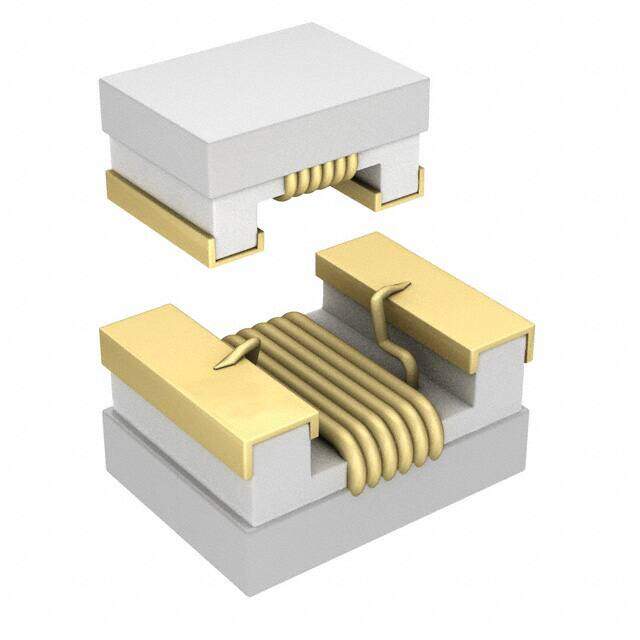

Description ROHS3Compliant Wirewound Active WRAPAROUND fixed air core inductor -55C~125C 6.6GHz 36mOhm 5.6nH
PDF
/
Inventory: 2513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.024 0.60mm

Technical

Rated Current-Max 1.7A
Inductance Frequency - Test 250MHz
Quality Factor-Min (at L-nom) 48
Q @ Freq 48 @ 250MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 6.6GHz
DC Resistance (DCR) 36mOhm
Test Frequency 250MHz
Inductance 5.6nH
Number of Functions 1
Shielding Unshielded
Current Rating (Amps) 1.7A
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.055Lx0.045W 1.40mmx1.15mm
Series 0603HP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ceramic
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
