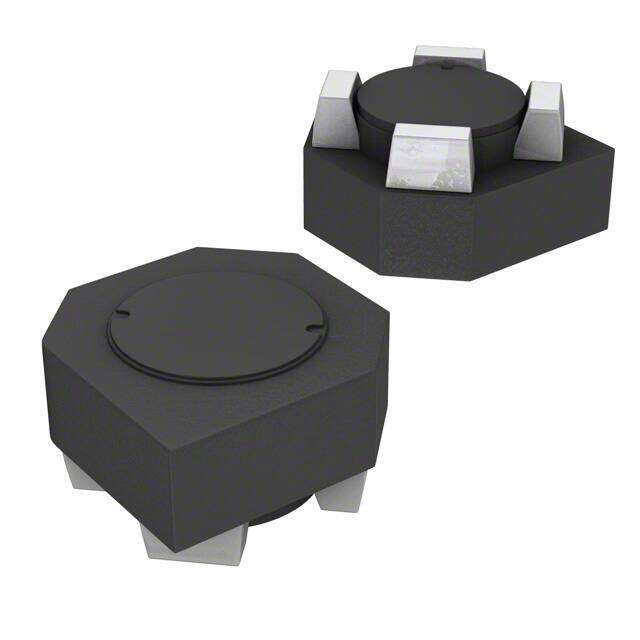

SRU3017-2R2Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU3017 Nonstandard 0.138Lx0.130W 3.50mmx3.30mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.63008
≥100 USD $0.577984
≥500 USD $0.52536
≥1000 USD $0.467456
≥3000 USD $0.441232
Inventory: 1144
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 1.8mm
Technical
Special Feature Q MEASURED AT 7.96 MHZ
RMS Current (Irms) 1.7A
DC Current 1.7A
Inductance Tolerance 30%
Case/Size Code 1313
Q Factor 8
Quality Factor-Min (at L-nom) 8
Q @ Freq 8 @ 7.96MHz
Terminal Placement DUAL IN-LINE
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 100MHz
Max DC Current 980mA
DC Resistance (DCR) 35mOhm
Test Frequency 100kHz
Inductance 2.2μH
Military Standard Not
Current Rating 1.7A
Construction Rectangular
Depth 3.5mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed, 7 Inch
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 35mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.138Lx0.130W 3.50mmx3.30mm
Series SRU3017
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
