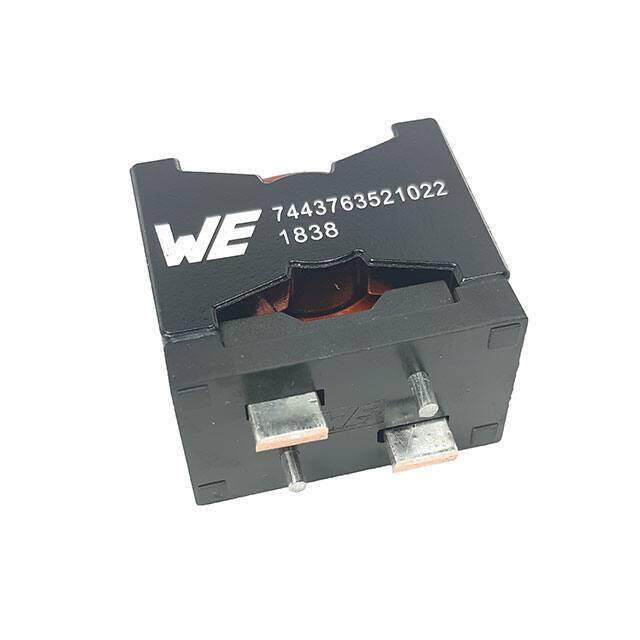

7443763521022
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 30MHz 0.4mOhm Max 2.2muH
PDF
/
Buying Options
Total Price: USD $19.61
Unit Price: USD $19.606849
≥1 USD $19.606849
≥198 USD $7.823571
≥504 USD $7.562304
≥999 USD $7.432327
Inventory: 1112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Physical
Mounting Type Through Hole
Package / Case Nonstandard
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 1.417Lx0.846W 36.00mmx21.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 75A
Shielding Shielded
Inductance 2.2μH
DC Resistance (DCR) 0.4mOhm Max
Frequency - Self Resonant 30MHz
Inductance Frequency - Test 100kHz
Current - Saturation 120A
Dimensions
Height Seated (Max) 1.378 35.00mm
Compliance
RoHS Status ROHS3 Compliant
