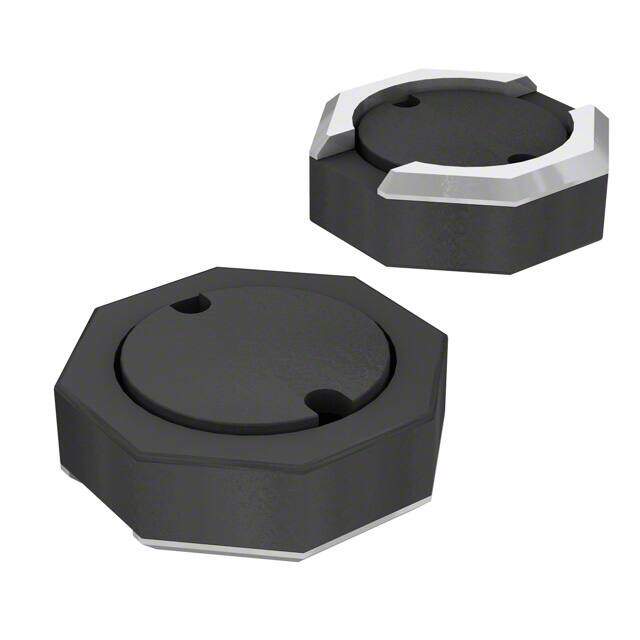

SRU2009-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU2009 Nonstandard 0.110Lx0.110W 2.80mmx2.80mm 10muH
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
Inventory: 1081
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series SRU2009
Size / Dimension 0.110Lx0.110W 2.80mmx2.80mm
Tolerance ±30%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 3mm
Current Rating 400mA
Military Standard Not
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 1.08Ohm Max
Current 680mA
Max DC Current 400mA
Frequency - Self Resonant 50MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 10 @ 2.52MHz
Quality Factor-Min (at L-nom) 10
Current - Saturation 350mA
Q Factor 10
Case/Size Code 1111
DC Current 400mA
Dimensions
Height 900μm
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
