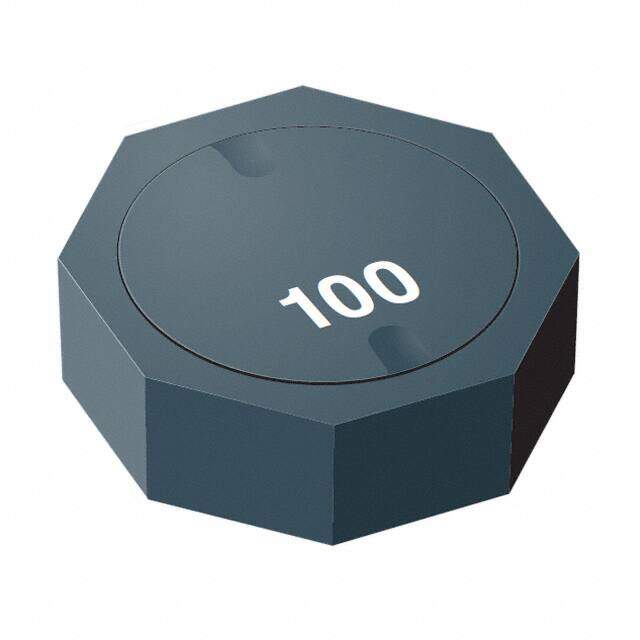

SRU1038A-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU1038A Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.57992
≥100 USD $0.527648
≥500 USD $0.495792
≥1000 USD $0.4114
≥3000 USD $0.379808
Inventory: 1135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2013
Series SRU1038A
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding Shielded
Depth 10.3mm
Current Rating 3.8A
Military Standard Not
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 35mOhm Max
Max DC Current 3.8A
Frequency - Self Resonant 20MHz
Q @ Freq 24 @ 2.52MHz
Current - Saturation 3.6A
Inductance Tolerance 30%
RMS Current (Irms) 3.8A
Dimensions
Height 3.8mm
Height Seated (Max) 0.161 4.10mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
