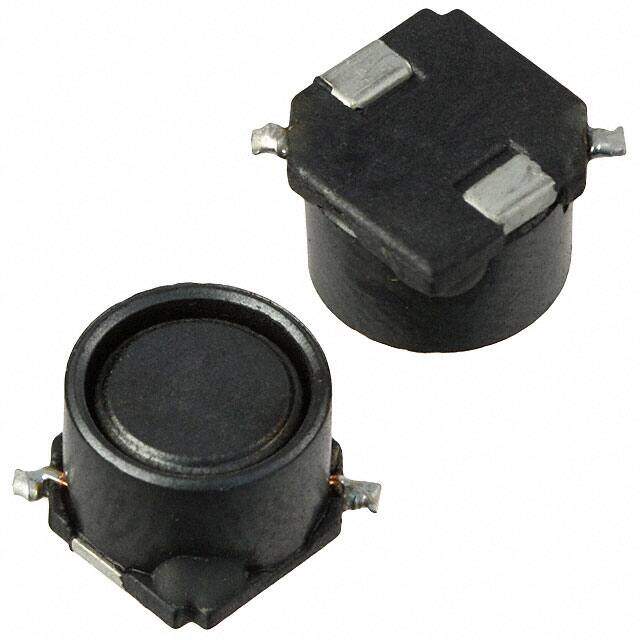

SRR7045-271M image
Favorite
SRR7045-271M image
Favorite

SRR7045-271M

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRR7045 Nonstandard 0.276Lx0.276W 7.00mmx7.00mm 270muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58784
≥100 USD $0.539264
≥500 USD $0.49016
≥1000 USD $0.436216
≥3000 USD $0.411734
Inventory: 2374
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material Steel
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SRR7045
Size / Dimension 0.276Lx0.276W 7.00mmx7.00mm
Tolerance ±20%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 840MOhm
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 7.3mm
Construction Chip
Current Rating 400mA
Frequency 5MHz
Military Standard Not
Inductance 270μH
Test Frequency 100kHz
DC Resistance (DCR) 840mOhm Max
Current 2.71A
Max DC Current 400mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 30 @ 796kHz
Quality Factor-Min (at L-nom) 30
Current - Saturation 275mA
Q Factor 30
Case/Size Code 2828
DC Current 400mA

Dimensions

Height 4.5mm
Height Seated (Max) 0.189 4.80mm

Compliance

RoHS Status ROHS3 Compliant
