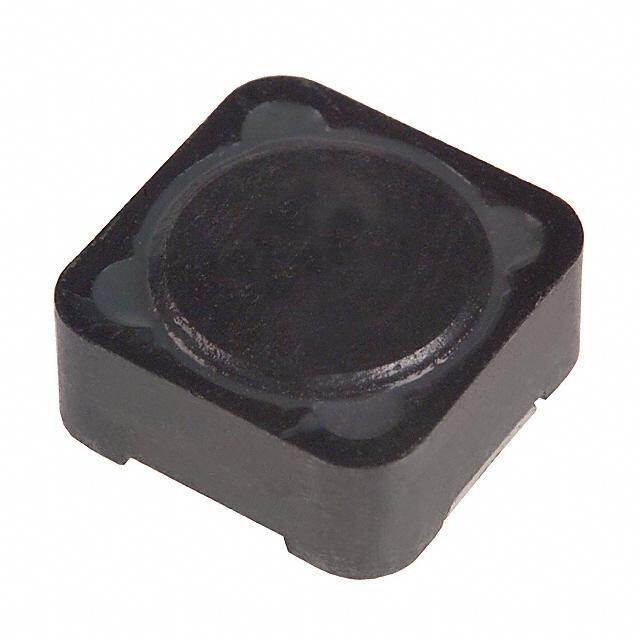

DQ1260-271M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND fixed air core inductor -40C 100kHz 460mOhm 270μH
PDF
/
Inventory: 1963
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 12.8016mm
Length 12.8016mm
Height Seated (Max) 5.9944mm
Technical
Inductance-Nom (L) 270 μH
DC Resistance (DCR) - Parallel 460mOhm
Current - Saturation 750mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Test Frequency 100kHz
Inductance 270 μH
Current Rating 750mA
Number of Functions 1
Shielding Shielded
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Tolerance 20%
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mount Surface Mount
