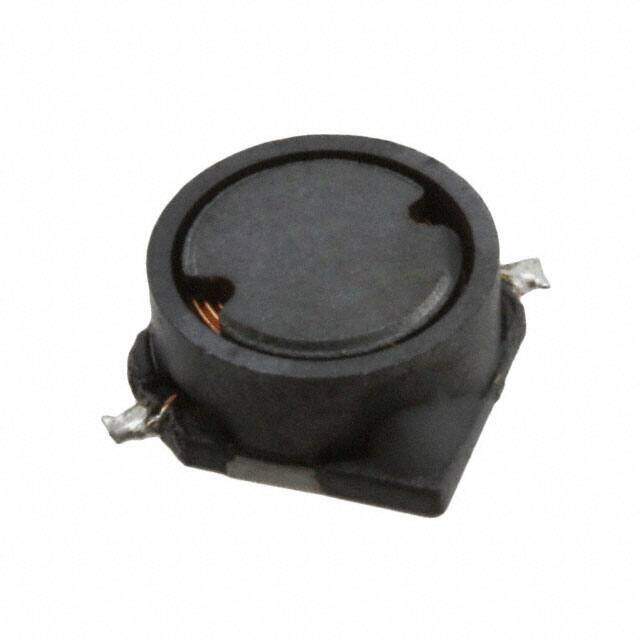

SRR7032-331M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR7032 Nonstandard 0.276Lx0.276W 7.00mmx7.00mm 330muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58784
≥100 USD $0.539264
≥500 USD $0.49016
≥1000 USD $0.436216
≥3000 USD $0.411734
Inventory: 1151
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.134 3.40mm
Height 3.2mm
Technical
RMS Current (Irms) 220mA
DC Current 220mA
Inductance Tolerance 20%
Q Factor 46
Current - Saturation 240mA
Quality Factor-Min (at L-nom) 46
Q @ Freq 46 @ 796kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 220mA
DC Resistance (DCR) 1.9Ohm Max
Test Frequency 100kHz
Inductance 330μH
Military Standard Not
Frequency 6.1MHz
Current Rating 220mA
Depth 7.3mm
Number of Functions 1
Shielding Shielded
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 1.9Ohm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.276Lx0.276W 7.00mmx7.00mm
Series SRR7032
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Material Steel
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
