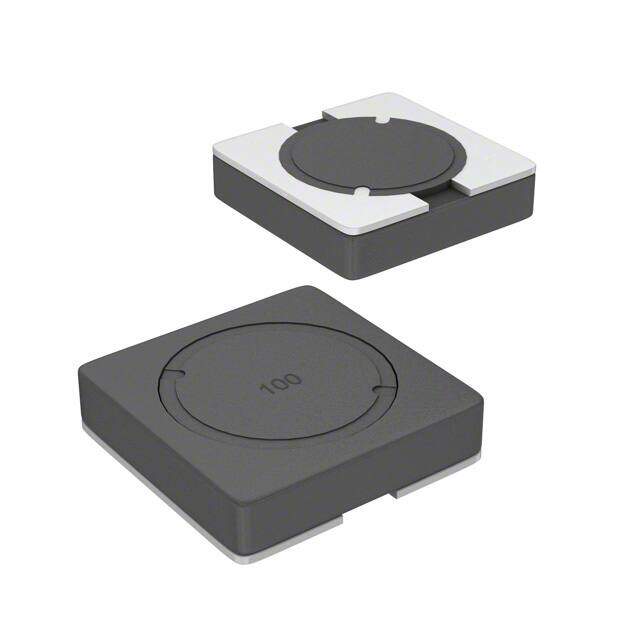

SRR4011-100YL image
Favorite
SRR4011-100YL image
Favorite

SRR4011-100YL

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRR4011 Nonstandard 0.189Lx0.189W 4.80mmx4.80mm 10muH
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.59664
≥100 USD $0.54736
≥500 USD $0.497552
≥1000 USD $0.442816
≥3000 USD $0.417894
Inventory: 1125
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.051 1.30mm
Height 1.143mm

Technical

RMS Current (Irms) 1A
DC Current 1A
Inductance Tolerance 30%
Case/Size Code 1919
Q Factor 14
Current - Saturation 830mA
Quality Factor-Min (at L-nom) 14
Q @ Freq 14 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 41MHz
Max DC Current 1A
DC Resistance (DCR) 240mOhm
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 1A
Depth 5.1mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±30%
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Series SRR4011
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
