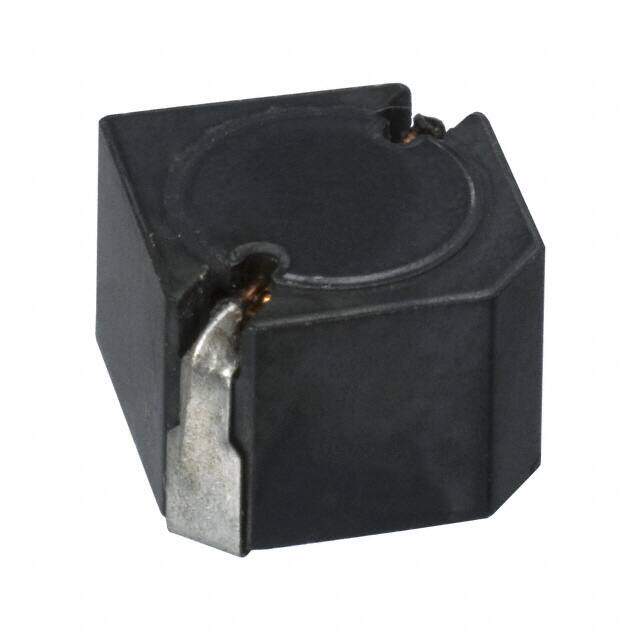

ELL-8UV100M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ELL-8UV Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 10muH
PDF
/
Inventory: 7978
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2005
Series ELL-8UV
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Wirewound
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 3mA
Shielding Unshielded
Current Rating 3mA
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 22Ohm
Current 4.2mA
Inductance Frequency - Test 100kHz
Dimensions
Height 6.1976mm
Height Seated (Max) 0.256 6.50mm
Length 9.398mm
Width 7.9756mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
