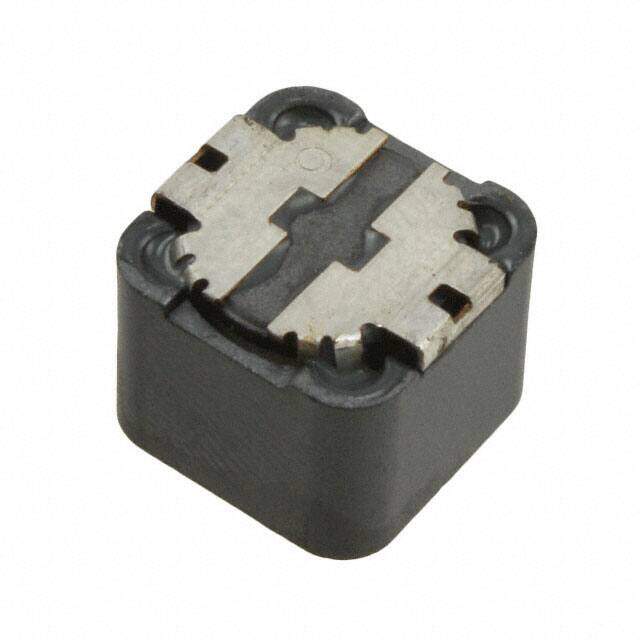

SRR1210-151M image
Favorite
SRR1210-151M image
Favorite

SRR1210-151M

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRR1210 Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 150muH
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7744
≥1 USD $0.7744
≥10 USD $0.65824
≥100 USD $0.5984
≥500 USD $0.562672
≥1000 USD $0.46684
Inventory: 63598
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series SRR1210
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, EMBOSSED, 13 INCH
Shielding YES
Number of Functions 1
Depth 12.5mm
Construction Rectangular
Current Rating 2.2A
Military Standard Not
Inductance 150μH
Test Frequency 100kHz
DC Resistance (DCR) 190mOhm Max
Current 9.5A
Max DC Current 2.2A
Frequency - Self Resonant 2.2MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 12 @ 796kHz
Current - Saturation 1.8A
Q Factor 12
Case/Size Code 4747
Inductance Tolerance 20%
DC Current 2.2A
RMS Current (Irms) 2.2A

Dimensions

Height 10mm
Height Seated (Max) 0.394 10.00mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
