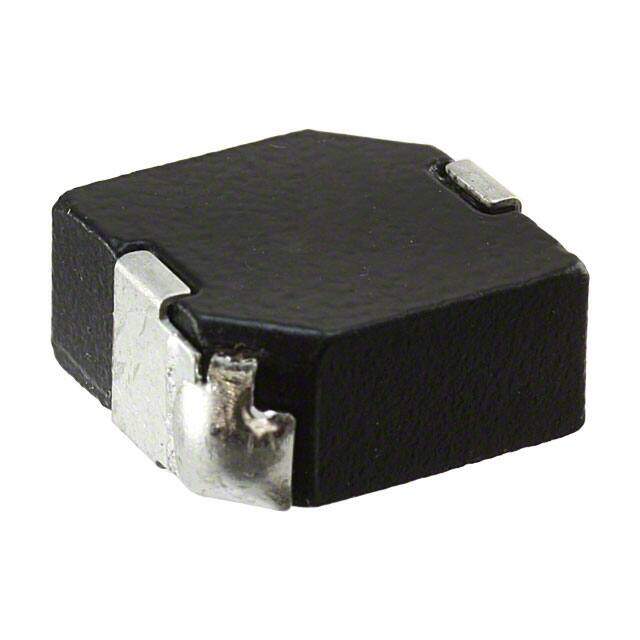

SRP1270-2R2M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRP1270 Nonstandard 0.539Lx0.539W 13.70mmx13.70mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.364
≥1 USD $1.364
≥10 USD $1.16072
≥100 USD $1.07008
≥500 USD $0.956208
≥1000 USD $0.79684
Inventory: 883
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 13.7mm
Length 13.7mm
Height Seated (Max) 0.276 7.00mm
Height 7mm
Technical
Series Resistance 4.2mOhm
RMS Current (Irms) 22A
DC Current 22A
Inductance Tolerance 20%
Current - Saturation 40A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 25MHz
Max DC Current 22A
Current 46A
DC Resistance (DCR) 4.2mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Military Standard Not
Base Part Number SRP1270
Current Rating 22A
Depth 13.7mm
Shielding Shielded
Current Rating (Amps) 22A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.539Lx0.539W 13.70mmx13.70mm
Series SRP1270
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Iron
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
