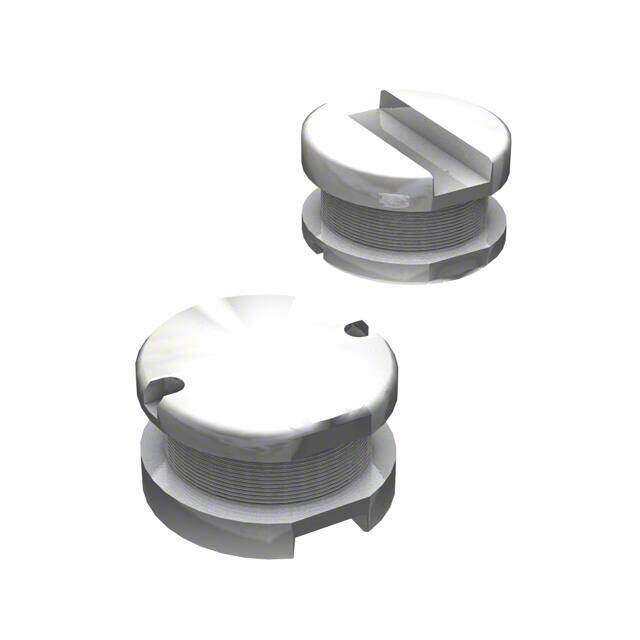

SDR1006-2R2ML
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR1006 Nonstandard 0.386Lx0.386W 9.80mmx9.80mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.63448
≥100 USD $0.581504
≥500 USD $0.528528
≥1000 USD $0.470448
≥3000 USD $0.444048
Inventory: 874
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SDR1006
Size / Dimension 0.386Lx0.386W 9.80mmx9.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 21MOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5.4A
Shielding Unshielded
Depth 9.8mm
Current Rating 5.4A
Base Part Number SDR1006
Military Standard Not
Inductance 2.2μH
Test Frequency 1kHz
DC Resistance (DCR) 21mOhm Max
Current 1.15A
Max DC Current 5.4A
Frequency - Self Resonant 68MHz
Q @ Freq 35 @ 7.96MHz
Inductance Frequency - Test 1kHz
Current - Saturation 10A
Q Factor 35
Inductance Tolerance 20%
DC Current 5.4A
RMS Current (Irms) 5.4A
Dimensions
Diameter 9.8mm
Height 5.8mm
Height Seated (Max) 0.228 5.80mm
Length 9.8044mm
Width 9.8044mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
