SRP1040-2R5M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRP1040 Nonstandard 0.465Lx0.413W 11.80mmx10.50mm 2.5muH
PDF
/
Inventory: 3678
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Iron
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Published 2011
Series SRP1040
Size / Dimension 0.465Lx0.413W 11.80mmx10.50mm
Tolerance ±20%
JESD-609 Code e2
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Copper/Tin (Cu/Sn)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 10.5mm
Current Rating 11.5A
Military Standard Not
Inductance 2.5μH
Test Frequency 100kHz
DC Resistance (DCR) 8.7mOhm Max
Current 5A
Max DC Current 11.5A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 14A
Case/Size Code 3942-16
DC Current 11.5A
Dimensions
Height 4.2mm
Height Seated (Max) 0.165 4.20mm
Compliance
RoHS Status ROHS3 Compliant

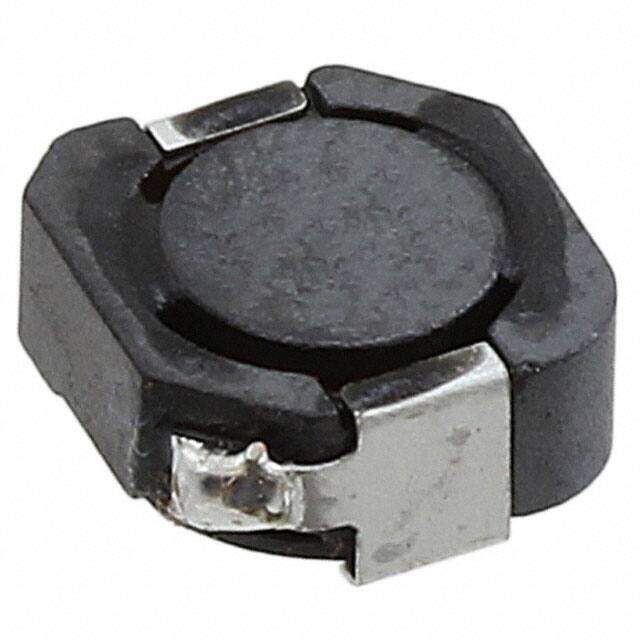

Alternative Model
