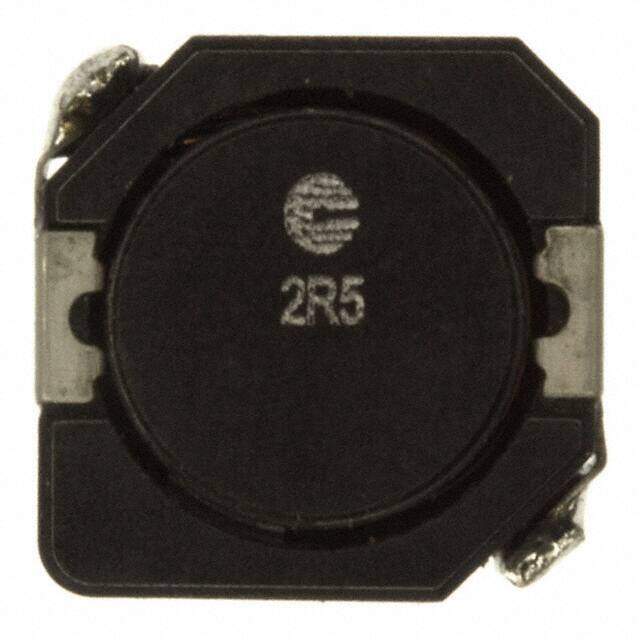

DR1040-2R5-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR1040 Nonstandard 0.413Lx0.406W 10.50mmx10.30mm 2.5muH
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.7436
≥100 USD $0.676192
≥500 USD $0.635712
≥1000 USD $0.527472
≥3000 USD $0.486922
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 10.3mm
Length 10.5mm
Height Seated (Max) 0.157 4.00mm
Height 4mm
Technical
RMS Current (Irms) 6.1A
DC Current 6.1A
Inductance Tolerance 30%
Current - Saturation 7.8A
Inductance Frequency - Test 100kHz
Max DC Current 6.1A
DC Resistance (DCR) 9mOhm Max
Test Frequency 100kHz
Inductance 2.5μH
Lead Pitch 7.7mm
Military Standard Not
Current Rating 6.1A
Depth 10.3mm
Shielding Shielded
Current Rating (Amps) 6.1A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Series DR1040
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 5.000005g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
