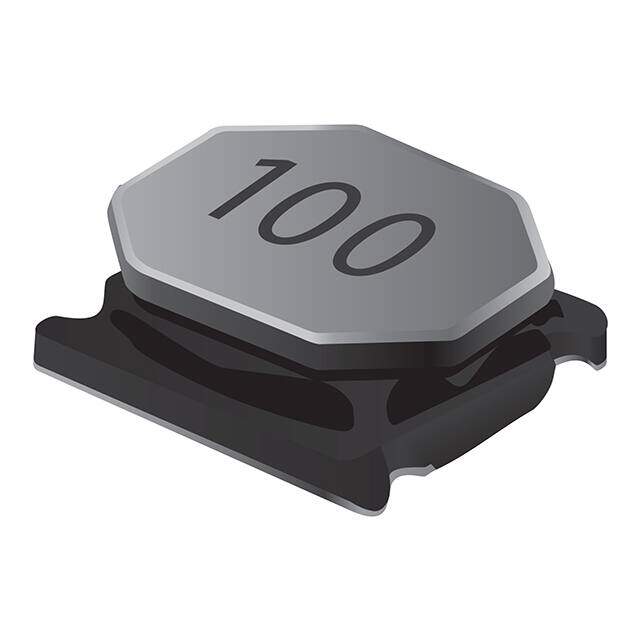

SRN5020TA-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN5020TA Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.24464
≥100 USD $0.224224
≥500 USD $0.203632
≥1000 USD $0.18128
≥3000 USD $0.171107
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Technical
Current - Saturation 1.7A
Inductance Frequency - Test 100kHz
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 41MHz
DC Resistance (DCR) 110mOhm
Inductance 10μH
Shielding Semi-Shielded
Current Rating (Amps) 1.6A
Terminal Finish Tin (Sn)
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Series SRN5020TA
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

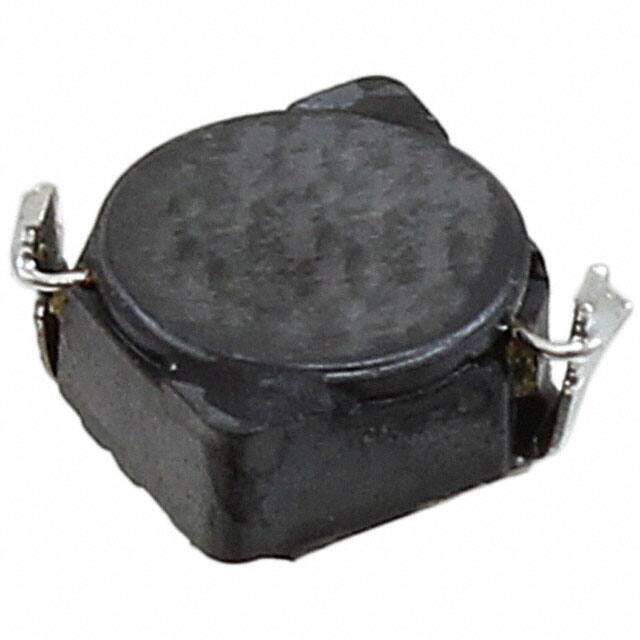

Alternative Model
