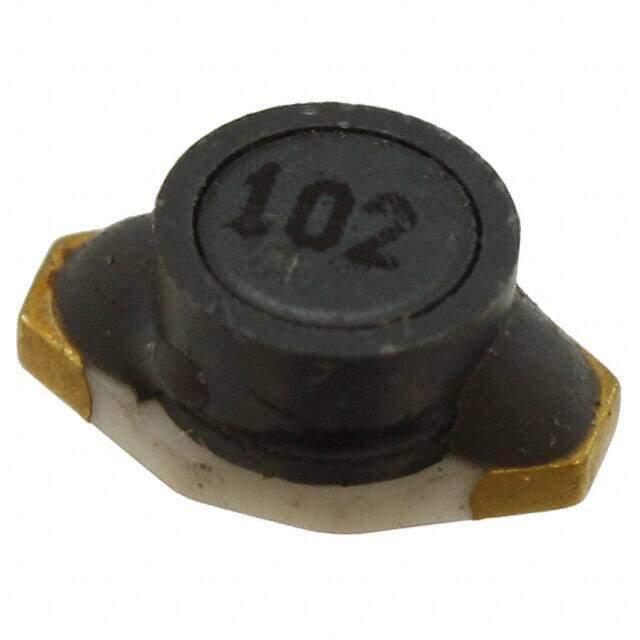

SRE6603-221M image
Favorite
SRE6603-221M image
Favorite

SRE6603-221M

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRE6603 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 220muH
PDF
/
Inventory: 2938
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -25°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series SRE6603
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Tolerance ±20%
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Silver/Nickel/Gold (Ag/Ni/Au)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 4.45mm
Reach Compliance Code unknown
Current Rating 220mA
Military Standard Not
Inductance 220μH
Test Frequency 100kHz
DC Resistance (DCR) 770mOhm Max
Max DC Current 220mA
Frequency - Self Resonant 6MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 40 @ 100kHz
Quality Factor-Min (at L-nom) 40
Current - Saturation 100mA
Q Factor 40
Inductance Tolerance 20%
DC Current 220mA
RMS Current (Irms) 220mA

Dimensions

Height 2.92mm
Height Seated (Max) 0.115 2.92mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
