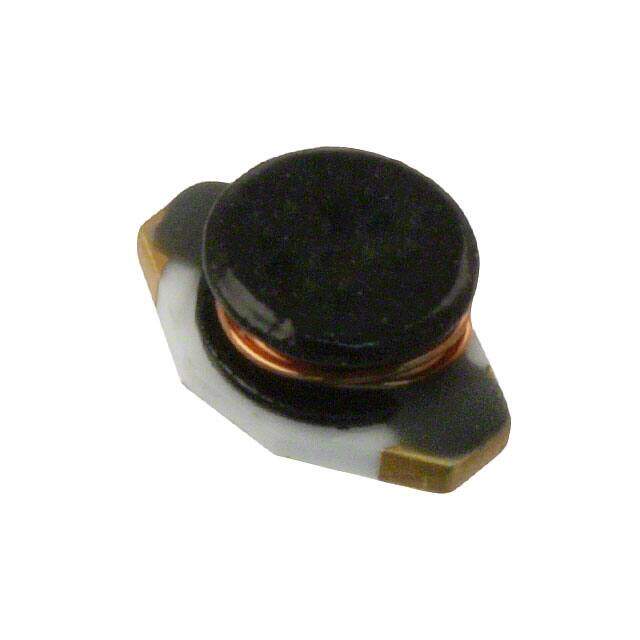

SDR6603-220M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR6603 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 22muH
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.7524
≥100 USD $0.683936
≥500 USD $0.642928
≥1000 USD $0.533456
≥3000 USD $0.492448
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.115 2.92mm
Height 2.92mm
Technical
DC Current 800mA
Case/Size Code 2618
Q Factor 16
Current - Saturation 700mA
Quality Factor-Min (at L-nom) 16
Q @ Freq 16 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 20MHz
Max DC Current 800mA
DC Resistance (DCR) 370mOhm Max
Test Frequency 100kHz
Inductance 22μH
Military Standard Not
Current Rating 800mA
Depth 4.45mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Silver/Nickel/Gold (Ag/Ni/Au)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series SDR6603
Published 2004
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
Alternative Model
