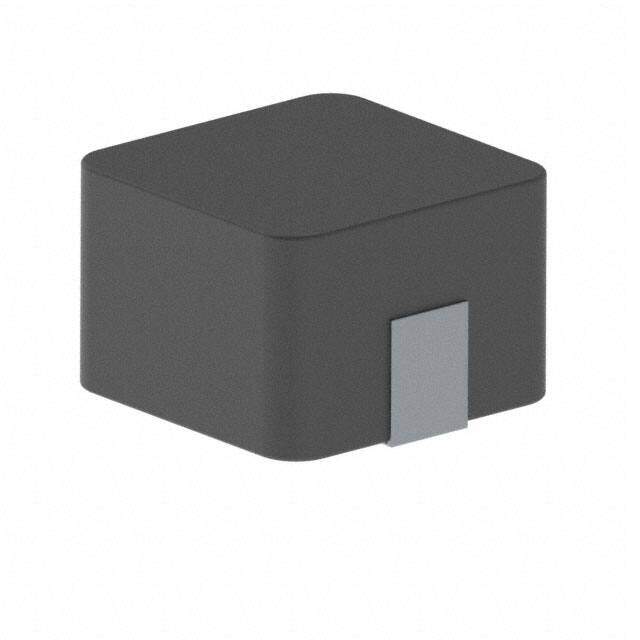

HCM1A0805-220-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 22UH 2A 110MOHM SMD
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.1472
≥1 USD $2.1472
≥10 USD $1.82688
≥100 USD $1.683616
≥500 USD $1.504448
≥1000 USD $1.253648
≥3000 USD $1.21785
Inventory: 234
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.213 5.40mm
Technical
Current - Saturation 3.8A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 110mOhm Max
Inductance 22μH
Shielding Shielded
Current Rating (Amps) 2A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.319Lx0.315W 8.10mmx8.00mm
Series HCM1A
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
