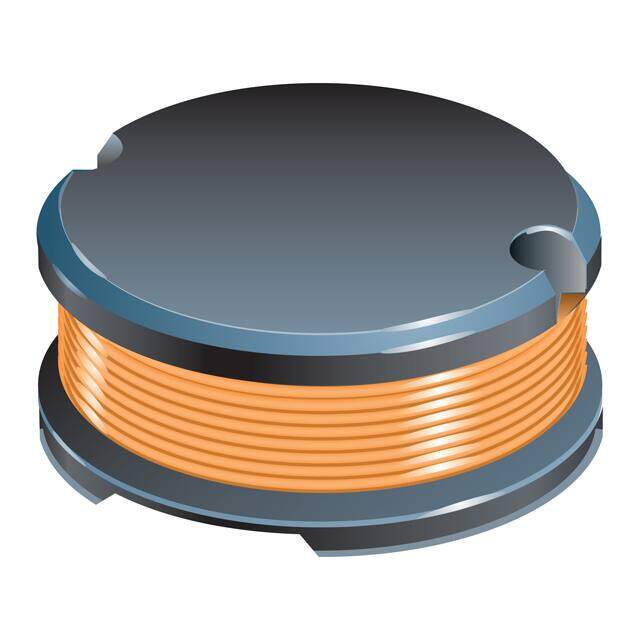

SDR1307A-4R7M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR1307A Nonstandard 0.512Dia 13.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.86416
≥100 USD $0.785664
≥500 USD $0.738496
≥1000 USD $0.612832
Inventory: 1114
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.287 7.30mm
Height 7mm
Technical
RMS Current (Irms) 7A
Inductance Tolerance 20%
Current - Saturation 13A
Q @ Freq 25 @ 7.96MHz
Frequency - Self Resonant 36MHz
Max DC Current 7A
DC Resistance (DCR) 10mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Military Standard Not
Current Rating 7A
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.512Dia 13.00mm
Series SDR1307A
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
