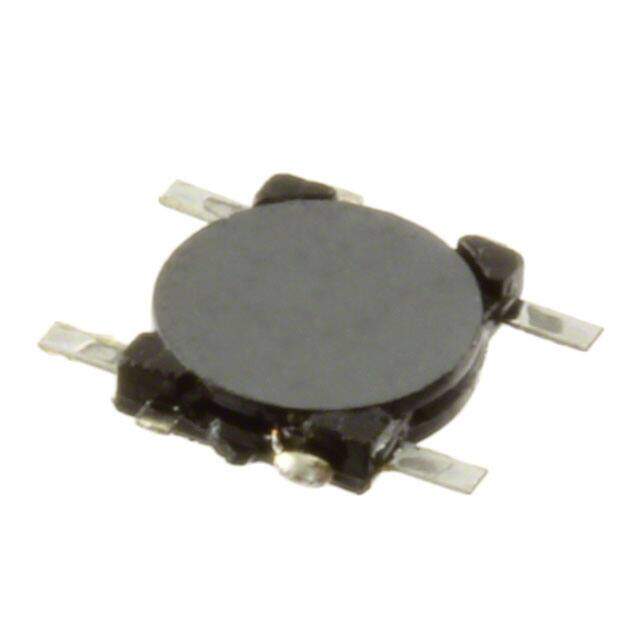

CMD4D06NP-4R7MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CMD Nonstandard 0.169Lx0.161W 4.30mmx4.10mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.415669
≥1 USD $0.415669
≥10 USD $0.392134
≥100 USD $0.369939
≥500 USD $0.349
≥1000 USD $0.329247
Inventory: 2993
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape FLAT
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Packaging Tape & Reel (TR)
Published 2010
Series CMD
Size / Dimension 0.169Lx0.161W 4.30mmx4.10mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 5.8mm
Current Rating 750mA
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 216mOhm Max
Max DC Current 750mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 1714
Dimensions
Height 800μm
Height Seated (Max) 0.031 0.80mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
