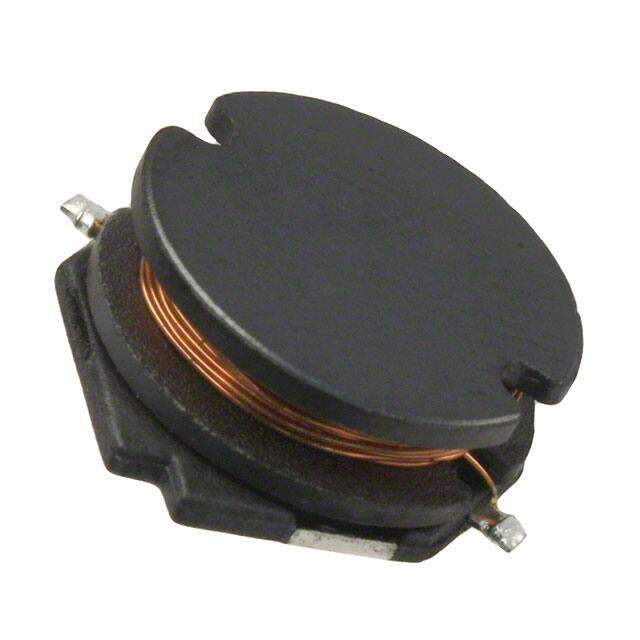

SDR1305-101K
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR1305 Nonstandard 0.500Lx0.500W 12.70mmx12.70mm 100muH
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.760241
≥1 USD $0.760241
≥10 USD $0.717209
≥100 USD $0.676612
≥500 USD $0.638315
≥1000 USD $0.602187
Inventory: 6070
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, Embossed , 13 Inch
Shielding NO
Number of Functions 1
Depth 13mm
Construction Rectangular
Current Rating 1.4A
Military Standard Not
Inductance 100μH
Test Frequency 100kHz
DC Resistance (DCR) 255mOhm Max
Max DC Current 1.4A
Frequency - Self Resonant 11MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 796kHz
Quality Factor-Min (at L-nom) 20
Q Factor 20
Case/Size Code 5050
DC Current 1.4A
Part Status Active
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Series SDR1305
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Height 4.8006mm
Height Seated (Max) 0.201 5.10mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
Alternative Model
