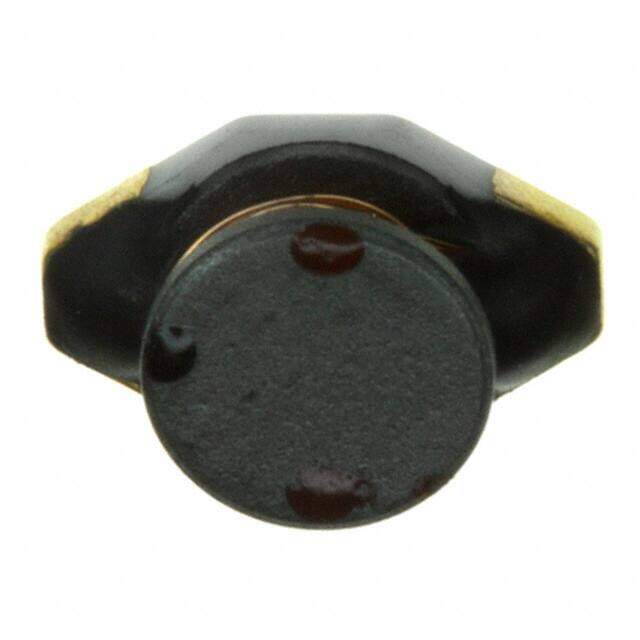

7445520 image
Favorite
7445520 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 100muH
PDF
/
Buying Options
Total Price: USD $3.53
Unit Price: USD $3.5302
≥1 USD $3.5302
≥10 USD $2.89655
≥100 USD $2.8063
≥500 USD $2.71605
≥1000 USD $2.62485
Inventory: 1156
Minimum: 1
-
+

Technical Details

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 1.08Ohm
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 300mA
Shielding Unshielded
Depth 4.45mm
Current Rating 300mA
Inductance 100μH
Test Frequency 100kHz
DC Resistance (DCR) 1.27Ohm Max
Max DC Current 300mA
Frequency - Self Resonant 8MHz
Inductance Frequency - Test 100kHz
Current - Saturation 310mA
Inductance Tolerance 20%
RMS Current (Irms) 300mA
Series Resistance 1.08Ohm

Dimensions

Height 2.92mm
Height Seated (Max) 0.115 2.92mm
Length 6.604mm
Width 4.445mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
