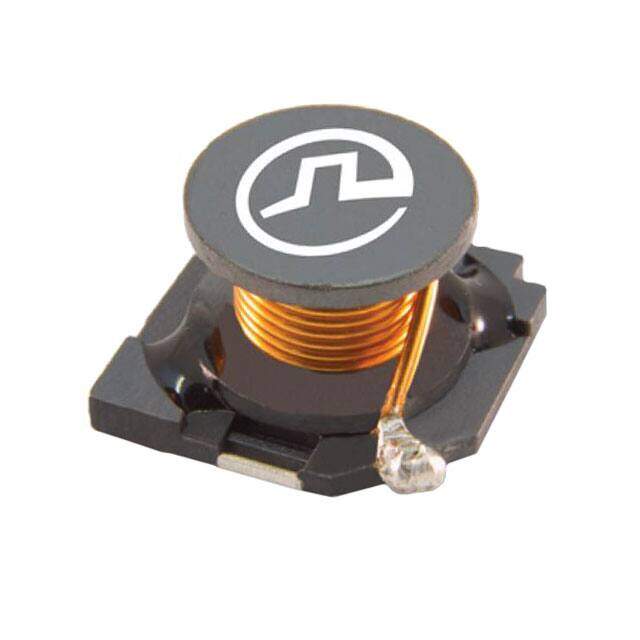

PA4310.563NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Wirewound Active 8504.50.80.00 Fixed Inductor -40C~125C 100kHz 191mOhm Max 56muH
PDF
/
Inventory: 2167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 191mOhm Max
Test Frequency 100kHz
Inductance 56μH
Current Rating 4.8A
Shielding Unshielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.504Lx0.504W 12.80mmx12.80mm
Series PA4310.XXXNL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
