SDR1005-681KL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

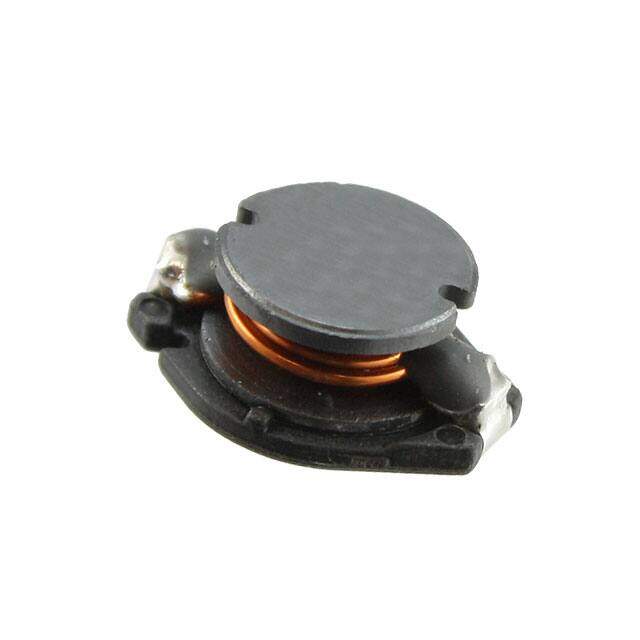

SDR1005 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 680muH
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.44176
≥100 USD $0.405152
≥500 USD $0.368192
≥1000 USD $0.327624
≥3000 USD $0.309267
Inventory: 1274
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 5mm
Technical
RMS Current (Irms) 350mA
DC Current 350mA
Inductance Tolerance 10%
Case/Size Code 5039
Q Factor 57
Current - Saturation 400mA
Q @ Freq 72 @ 96kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 3MHz
Max DC Current 350mA
DC Resistance (DCR) 2.6Ohm Max
Test Frequency 1kHz
Inductance 680μH
Lead Pitch 7.6mm
Military Standard Not
Current Rating 350mA
Construction Rectangular
Depth 10.2mm
Number of Functions 1
Shielding NO
Packing Method TR, EMBOSSED, 13 INCH
HTS Code 8504.50.80.00
Terminal Finish Copper/Tin (Cu/Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series SDR1005
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
