SDE0403A-150M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDE0403A Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 15muH
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.43384
≥100 USD $0.397408
≥500 USD $0.361328
≥1000 USD $0.321552
≥3000 USD $0.303494
Inventory: 1154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series SDE0403A
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 850mA
Inductance 15μH
Test Frequency 1MHz
DC Resistance (DCR) 259mOhm Max
Frequency - Self Resonant 29MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 1.2A
Case/Size Code 1816
Rated Current-Max 0.85A
Inductance Tolerance 20%
RMS Current (Irms) 850mA
Dimensions
Height Seated (Max) 0.138 3.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200

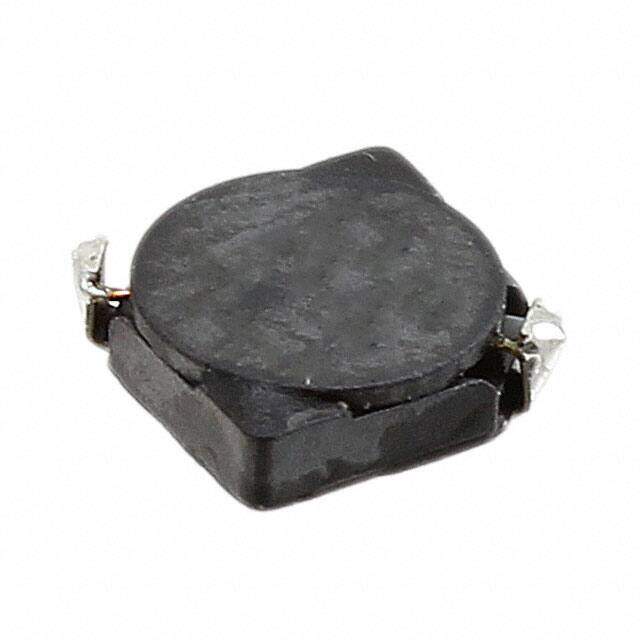

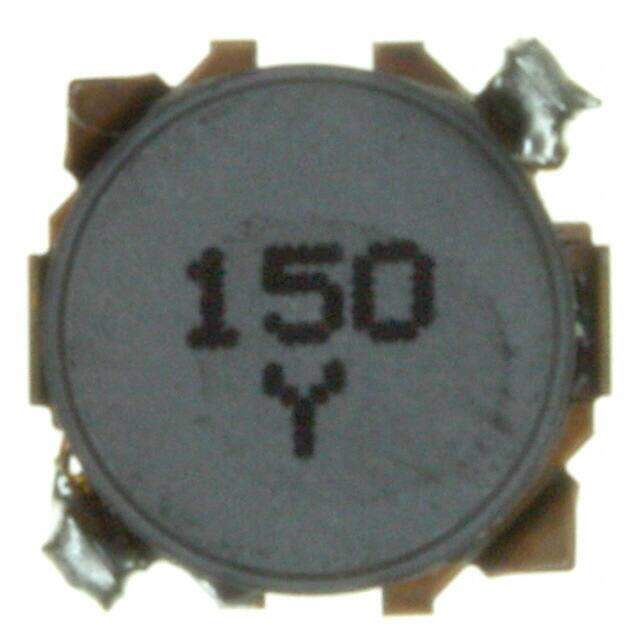

Alternative Model
