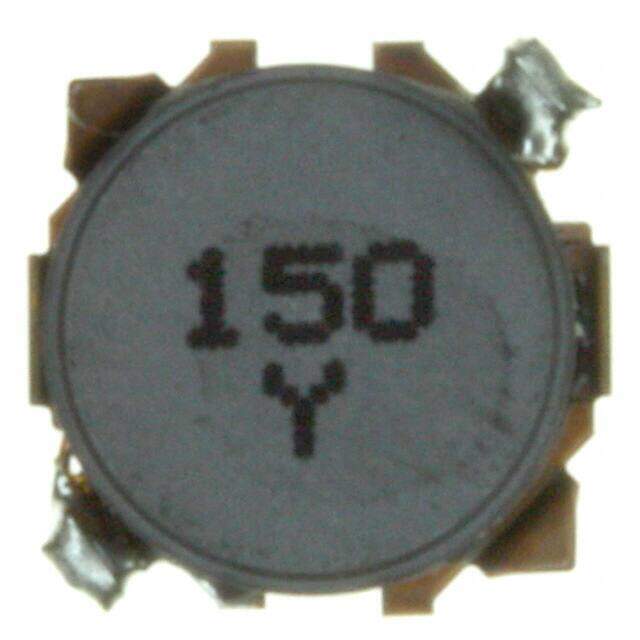

ELL-6GG150M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
G Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 15muH
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.921231
≥1 USD $0.921231
≥10 USD $0.869086
≥100 USD $0.819889
≥500 USD $0.773491
≥1000 USD $0.729701
Inventory: 1123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape L BEND
Core Material FERRITE
Technical
Packaging Tape & Reel (TR)
Series G
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, Embossed
Shielding YES
Number of Functions 1
Depth 6.3mm
Current Rating 900mA
Military Standard Not
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 210mOhm
Max DC Current 900mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 800mA
Case/Size Code 2424
DC Current 900mA
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Dimensions
Height 1.6mm
Height Seated (Max) 0.063 1.60mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
