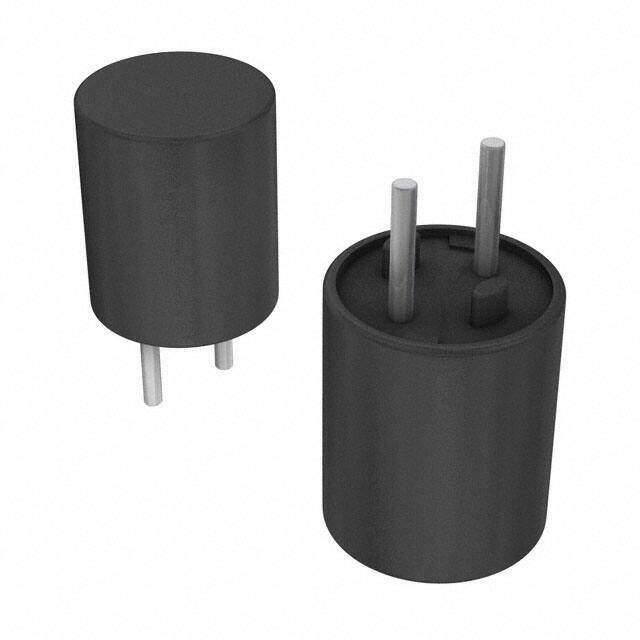

ELC-10E391L
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
10E Radial Vertical Cylinder 0.394Dia 10.00mm 390muH
PDF
/
Inventory: 3743
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.512 13.00mm
Technical
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Rated Current-Max 0.5A
Inductance Frequency - Test 10kHz
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 720mOhm
Test Frequency 0.01MHz
Inductance 390μH
Lead Diameter 0.7 mm
Lead Spacing 7mm
Lead Length 5mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 105°C
Construction Cylindrical
Number of Functions 1
Shielding Shielded
Current Rating (Amps) 500mA
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.394Dia 10.00mm
Series 10E
Packaging Bulk
Physical
Core Material FERRITE
Shape/Size Description CYLINDRICAL PACKAGE
Surface Mount NO
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Supply Chain
Factory Lead Time 15 Weeks
