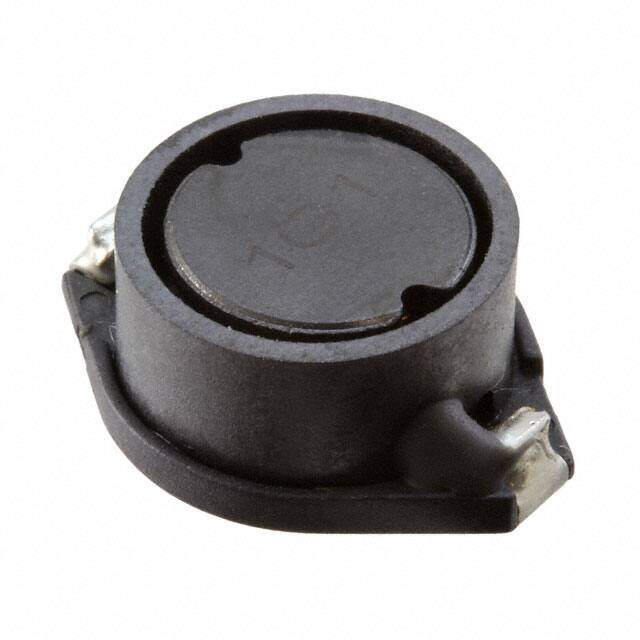

PM5022S-680M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM5022S Nonstandard 0.720Lx0.551W 18.30mmx14.00mm 68muH
PDF
/
Inventory: 5757
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series PM5022S
Size / Dimension 0.720Lx0.551W 18.30mmx14.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 14.3mm
Current Rating 1.6A
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 170mOhm
Max DC Current 1.6A
Frequency - Self Resonant 6MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 37 @ 2.52MHz
Quality Factor-Min (at L-nom) 37
Current - Saturation 3.4A
Dimensions
Height 6.8mm
Height Seated (Max) 0.280 7.10mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
