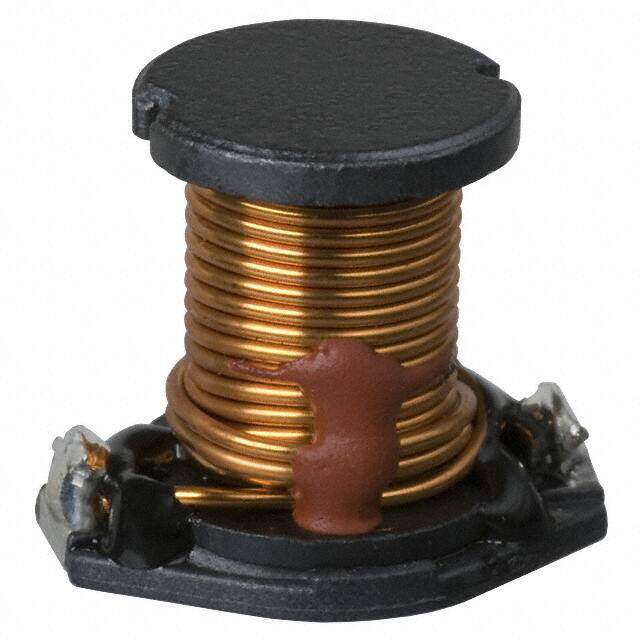

PM3340-150M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM3340 Nonstandard 0.512Lx0.402W 13.00mmx10.20mm 15muH
PDF
/
Inventory: 2610
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.453 11.50mm
Height 11.5mm
Technical
RMS Current (Irms) 3A
DC Current 3A
Inductance Tolerance 20%
Case/Size Code 5140
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 7A
DC Resistance (DCR) 42mOhm Max
Test Frequency 100kHz
Inductance 15μH
Military Standard Not
Current Rating 3A
Construction Rectangular
Depth 10.2mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Nickel/Copper (Sn/Ni/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.512Lx0.402W 13.00mmx10.20mm
Series PM3340
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
