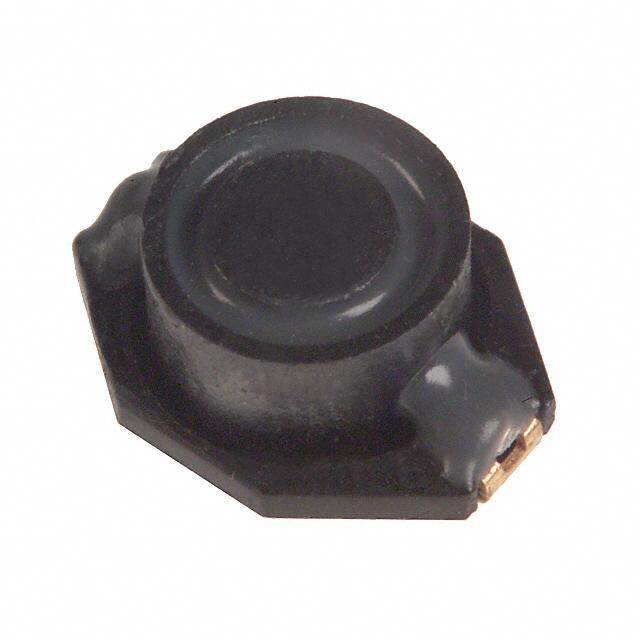

PM32-560M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM32 Nonstandard 0.118Lx0.110W 3.00mmx2.80mm 56muH
PDF
/
Inventory: 1937
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series PM32
Size / Dimension 0.118Lx0.110W 3.00mmx2.80mm
Tolerance ±20%
JESD-609 Code e2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 3.1mm
Current Rating 340mA
Military Standard Not
Inductance 56μH
Test Frequency 1kHz
DC Resistance (DCR) 1.45Ohm Max
Max DC Current 340mA
Frequency - Self Resonant 16MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 18 @ 2.52MHz
Quality Factor-Min (at L-nom) 18
Current - Saturation 350mA
Case/Size Code 1211
DC Current 340mA
Dimensions
Height 2.8mm
Height Seated (Max) 0.110 2.80mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
