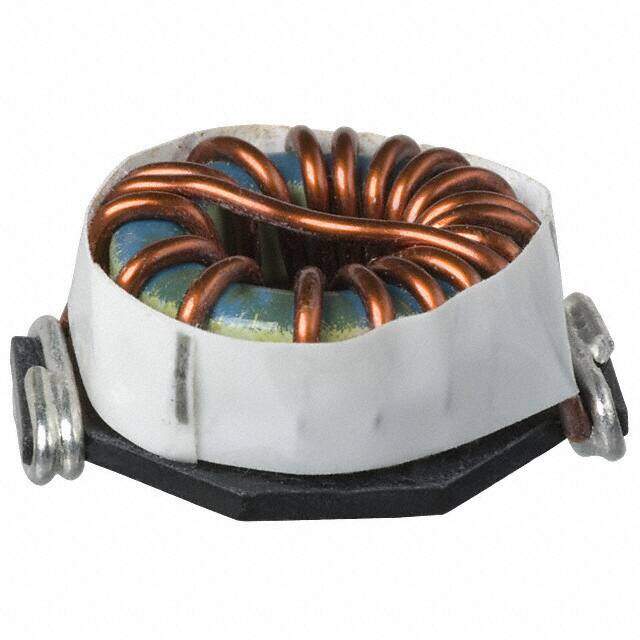

PM2110-331K-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM2110 Nonstandard 1.201Lx1.000W 30.50mmx25.40mm 330muH
PDF
/
Inventory: 9112
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.600 15.24mm
Height 15.24mm
Technical
Self Resonant Frequency 1kHz
RMS Current (Irms) 3.2A
DC Current 3.2A
Inductance Tolerance 10%
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 3.2A
DC Resistance (DCR) 90mOhm Max
Test Frequency 1kHz
Inductance 330μH
Military Standard Not
Current Rating 3.2A
Depth 25.4mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 1.201Lx1.000W 30.50mmx25.40mm
Series PM2110
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
