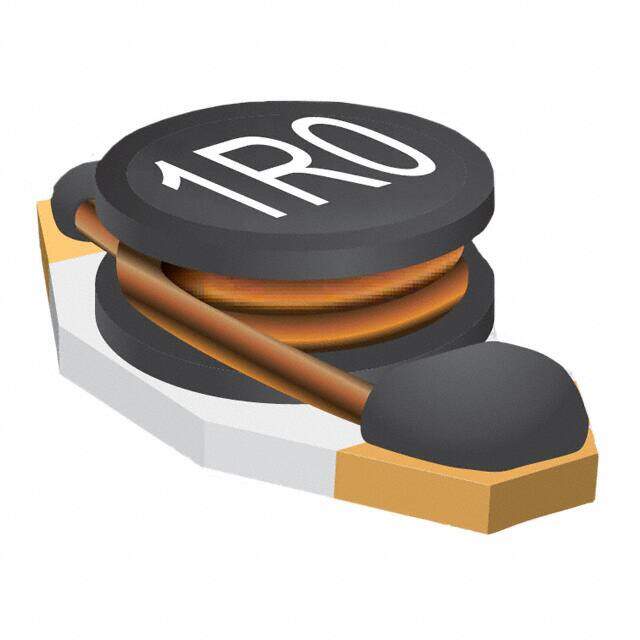

PM1608-470M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM1608 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 47muH
PDF
/
Inventory: 7691
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.115 2.92mm
Height 2.92mm
Technical
Case/Size Code 2618
Inductance Frequency - Test 2.52MHz
Q @ Freq 15 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 14MHz
Max DC Current 500mA
DC Resistance (DCR) 640mOhm Max
Test Frequency 0.1MHz
Inductance 47μH
Construction Rectangular
Depth 4.45mm
Number of Functions 1
Shielding NO
Packing Method TR, Embossed, 7 Inch
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series PM1608
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
