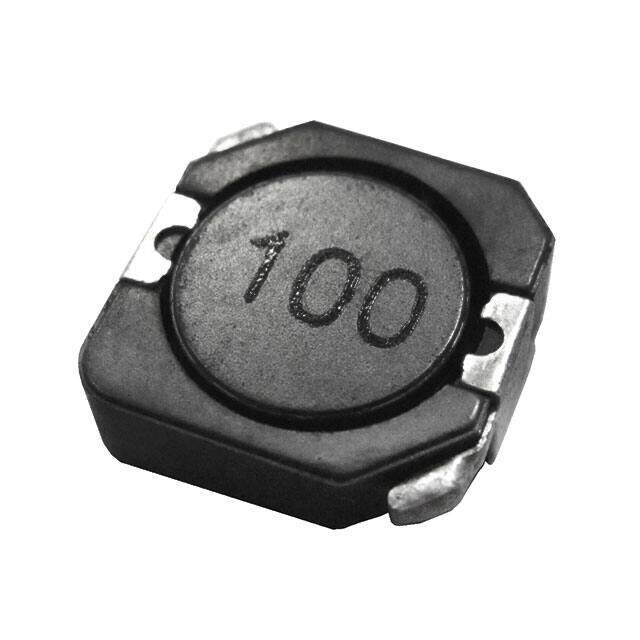

BPSC00101140470M00
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR, PWR, WW
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.65824
≥100 USD $0.602976
≥500 USD $0.54824
≥1000 USD $0.487872
≥3000 USD $0.460451
Inventory: 1148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series BPSC
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding Shielded
Inductance 47μH
DC Resistance (DCR) 144mOhm Max
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.8A
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
