PM105-470K
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM105 Nonstandard 0.386Lx0.386W 9.80mmx9.80mm 47muH
PDF
/
Inventory: 966
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.228 5.80mm
Height 5.8mm
Diameter 9.8mm
Technical
Case/Size Code 3935
Q Factor 20
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 10MHz
Max DC Current 1.25A
DC Resistance (DCR) 170mOhm
Test Frequency 2.52MHz
Inductance 47μH
Current Rating 1.28A
Reach Compliance Code unknown
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.386Lx0.386W 9.80mmx9.80mm
Series PM105
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -30°C~100°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

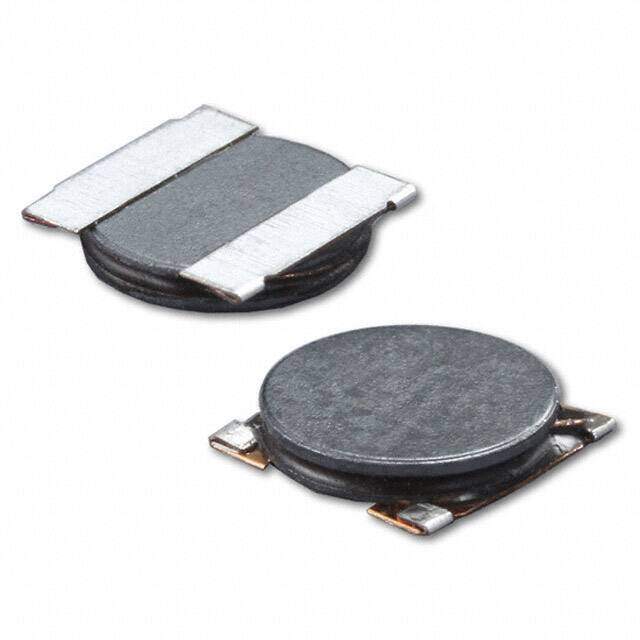

Alternative Model
