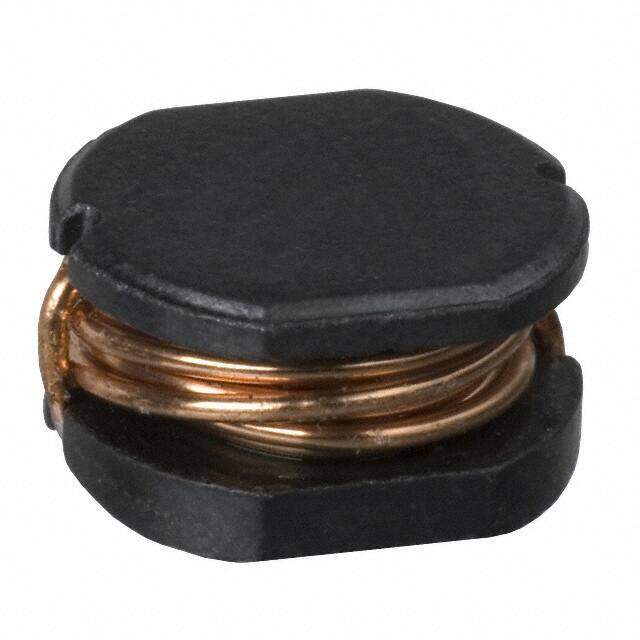

PM105-100M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM105 Nonstandard 0.386Lx0.386W 9.80mmx9.80mm 10muH
PDF
/
Inventory: 2800
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -30°C~100°C
Packaging Tape & Reel (TR)
Published 2002
Series PM105
Size / Dimension 0.386Lx0.386W 9.80mmx9.80mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Reach Compliance Code unknown
Current Rating 2.6A
Inductance 10μH
Test Frequency 2.52MHz
DC Resistance (DCR) 60mOhm
Max DC Current 2.6A
Frequency - Self Resonant 25MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 3935
Dimensions
Diameter 9.8mm
Height 5.8mm
Height Seated (Max) 0.228 5.80mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
