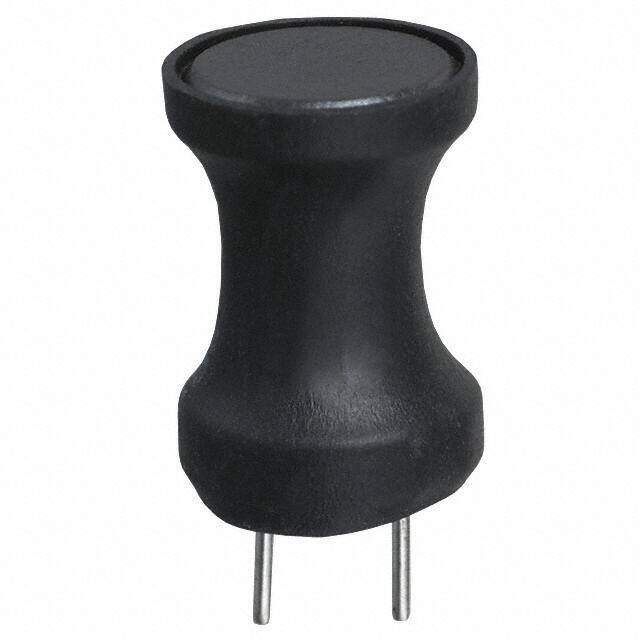

RL824-101K-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RL824 Radial Vertical Cylinder 0.413Dia 10.50mm 100muH
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.3552
≥1 USD $1.3552
≥10 USD $1.14752
≥100 USD $0.81356
≥500 USD $0.646668
≥1000 USD $0.604947
≥3000 USD $0.584082
Inventory: 978
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series RL824
Size / Dimension 0.413Dia 10.50mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 1.02A
Military Standard Not
Lead Pitch 5mm
Lead Length 5mm
Lead Diameter 0.7 mm
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 1.02A
Frequency - Self Resonant 2.8MHz
Inductor Application DC-DC CONVERTER
Q @ Freq 58 @ 790kHz
Lead/Base Style Radial
Quality Factor-Min (at L-nom) 58
Inductance Tolerance 10%
DC Current 1.02A
Special Feature Q IS MEASURED AT: 0.79 MHZ
Dimensions
Height 15.494mm
Height Seated (Max) 0.610 15.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
