LPV1620-101KL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LPV Radial Vertical Cylinder 0.630Dia 16.00mm 100muH
PDF
/
Inventory: 2859
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Surface Mount NO
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series LPV
Size / Dimension 0.630Dia 16.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Shrink Tube
Base Part Number LPA1620
Military Standard Not
Lead Pitch 8mm
Lead Length 15mm
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 90mOhm Max
Max DC Current 2A
Inductor Application POWER INDUCTOR
Inductance Frequency - Test 1kHz
DC Current 2A
Dimensions
Diameter 16mm
Height 20mm
Height Seated (Max) 0.787 20.00mm
Compliance
RoHS Status ROHS3 Compliant

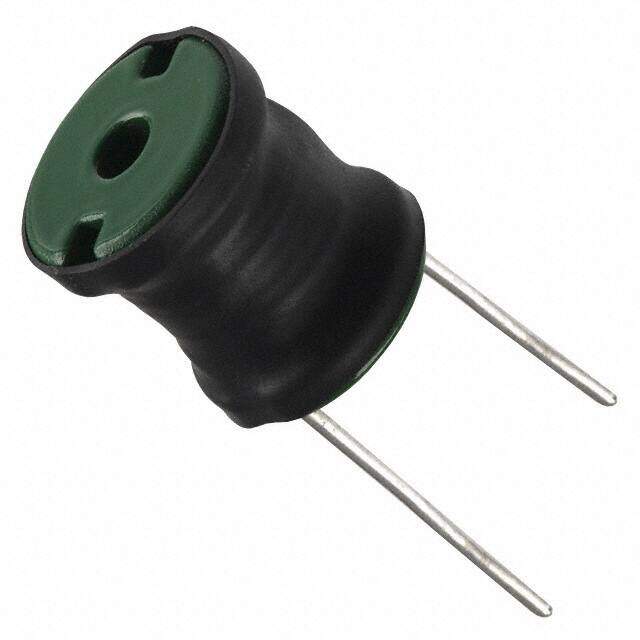

Alternative Model
