DC780R-104K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description

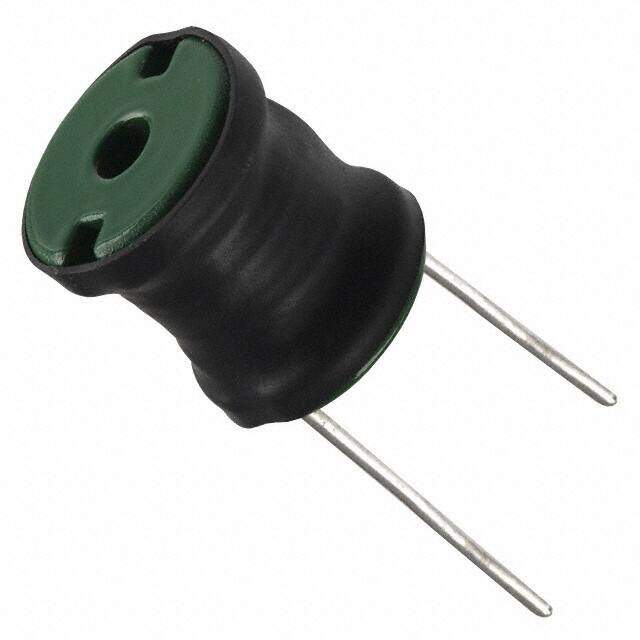

DC780R Radial Vertical Cylinder 0.772Dia 19.60mm 100muH
PDF
/
Buying Options
Total Price: USD $7.29
Unit Price: USD $7.2864
≥1 USD $7.2864
≥10 USD $6.28144
≥100 USD $5.826304
≥500 USD $5.644144
≥1000 USD $5.37108
≥3000 USD $5.280062
Inventory: 145
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.831 21.10mm
Height 21.1mm
Diameter 20.1mm
Technical
Self Resonant Frequency 1kHz
Current - Saturation 10.9A
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 4A
DC Resistance (DCR) 80mOhm Max
Test Frequency 1kHz
Inductance 100μH
Lead Spacing 15.062mm
Lead Length 19.05mm
Current Rating 4A
Construction Cylindrical
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn99.3Cu0.7)
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.772Dia 19.60mm
Series DC780R
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
