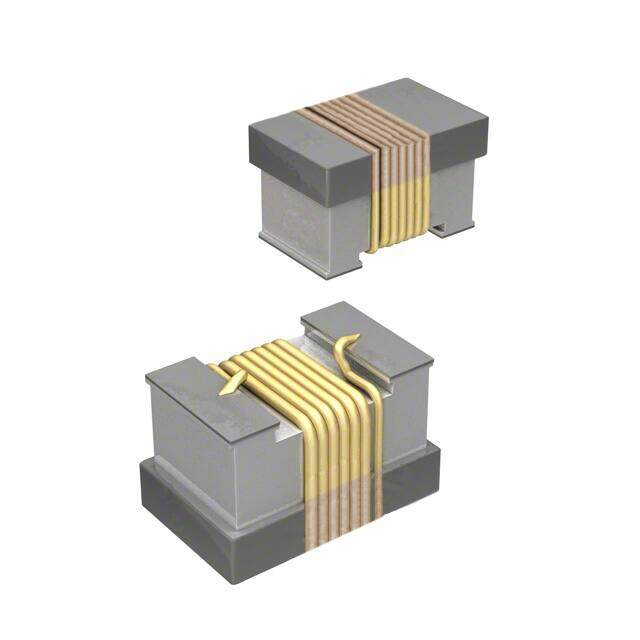

CW100505-6N2J
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED INDUCTOR 6.2NH SMD
PDF
/
Inventory: 3530
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 558.8μm
Length 990.6μm
Height Seated (Max) 0.024 0.60mm
Technical
Inductance Frequency - Test 250MHz
Test Frequency 250MHz
Inductance 6.2nH
Base Part Number CW100505
Shielding Unshielded
Composition Wirewound
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.039Lx0.022W 1.00mmx0.55mm
Series CW100505
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ceramic
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

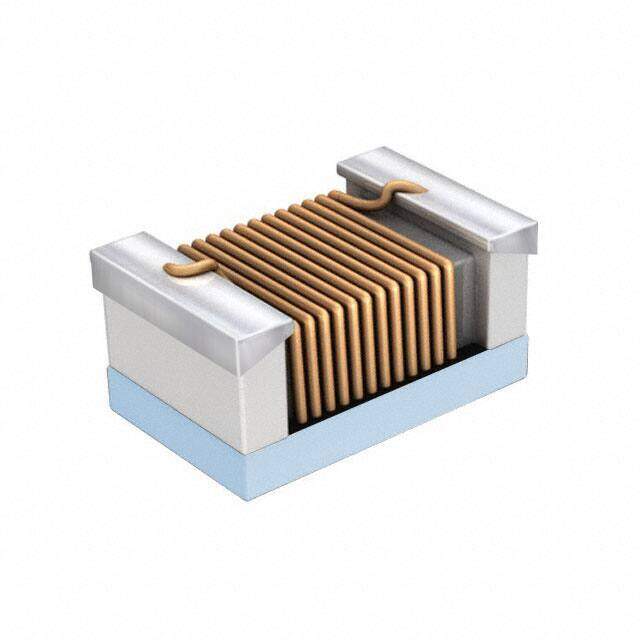

Alternative Model
