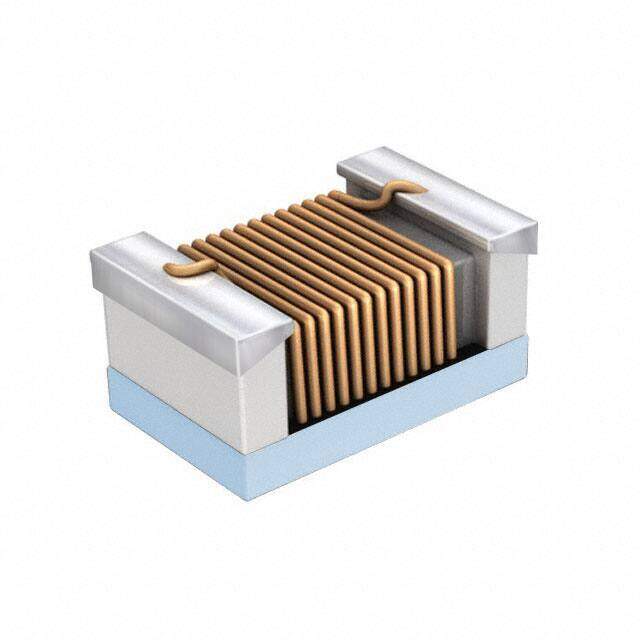

0402HM-6N2EBTS image
Favorite
0402HM-6N2EBTS image
Favorite
RoHS
RoHS RoHS compliant
Package 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description 0402HM-6N2EBTS
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.1936
≥1 USD $0.1936
≥10 USD $0.15664
≥100 USD $0.143616
≥500 USD $0.12672
≥1000 USD $0.110792
≥3000 USD $0.10553
Inventory: 1195
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.024 0.60mm

Technical

Inductance Frequency - Test 100MHz
Q @ Freq 25 @ 250MHz
Frequency - Self Resonant 8GHz
DC Resistance (DCR) 90mOhm
Inductance 6.2nH
Shielding Unshielded
Current Rating (Amps) 700mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.1nH
Size / Dimension 0.045Lx0.028W 1.15mmx0.70mm
Series 0402HM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Material - Core Ceramic
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
