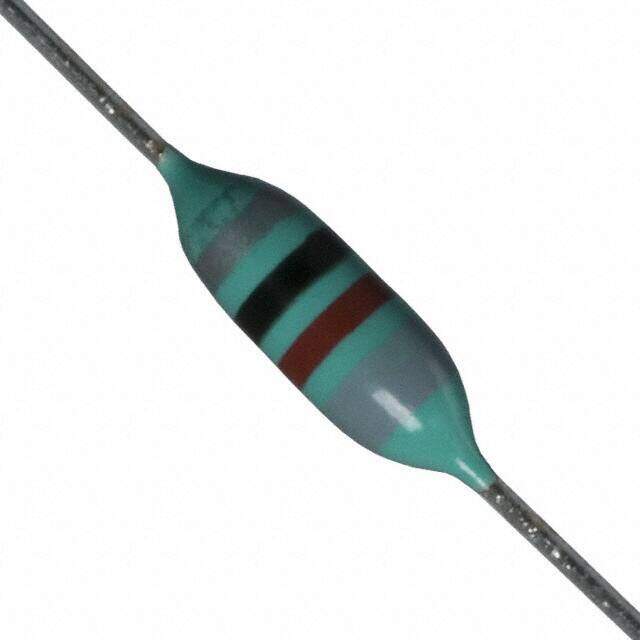

8230-66
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 82muH
PDF
/
Inventory: 2131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Length 7.62mm
Diameter 3.05mm
Technical
Q Factor 50
Inductance Frequency - Test 2.5MHz
Q @ Freq 50 @ 2.5MHz
Frequency - Self Resonant 14MHz
Max DC Current 130mA
DC Resistance (DCR) 7.3Ohm Max
Test Frequency 2.5MHz
Inductance 82μH
Base Part Number 8230
Current Rating 130mA
Shielding Unshielded
Current Rating (Amps) 130mA
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Type Wirewound
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Series 8230
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Material - Core Ferrite
Supplier Device Package Axial
Number of Pins 2
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
