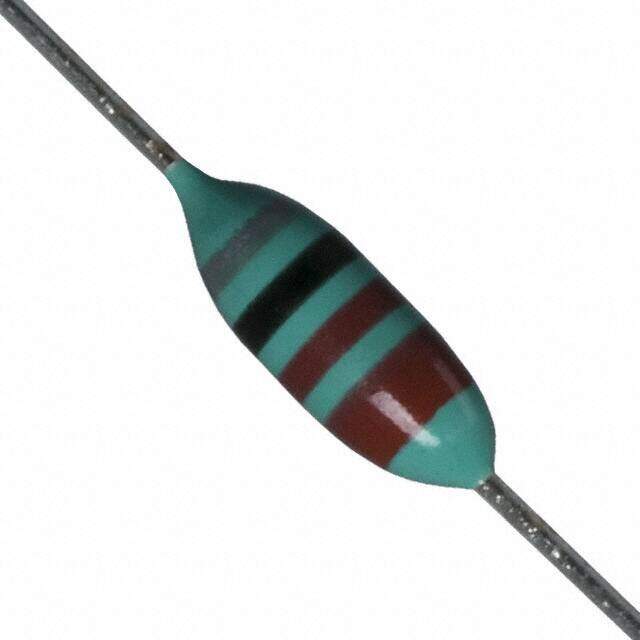

8230-52
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 22muH
PDF
/
Inventory: 5102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2006
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
Shielding Unshielded
Current Rating 190mA
Inductance 22μH
Test Frequency 2.5MHz
DC Resistance (DCR) 3.3Ohm Max
Max DC Current 190mA
Frequency - Self Resonant 25MHz
Q @ Freq 50 @ 2.5MHz
Q Factor 50
Dimensions
Diameter 3.05mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
