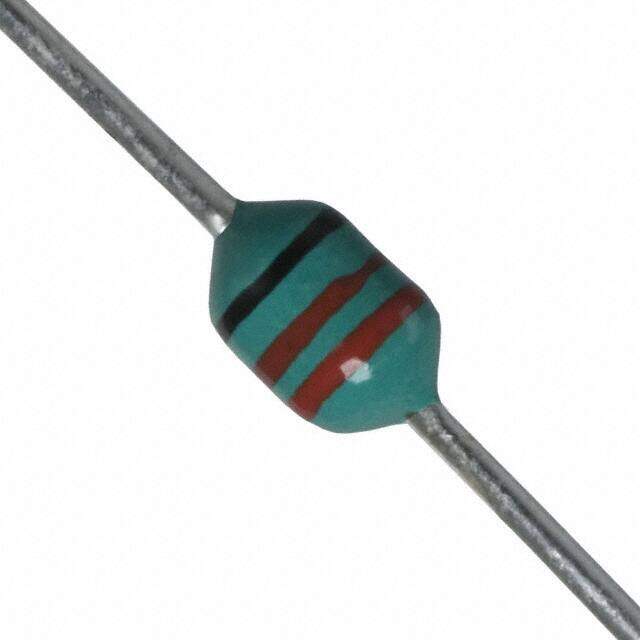

79F220K-TR-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
79F Axial 0.100Diax0.160L 2.54mmx4.06mm 22muH
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.551418
≥1 USD $0.551418
≥200 USD $0.220567
≥500 USD $0.21269
≥1000 USD $0.208751
Inventory: 7654
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Diameter 2.54mm
Technical
DC Current 100mA
Inductance Tolerance 10%
Q Factor 40
Quality Factor-Min (at L-nom) 40
Q @ Freq 40 @ 2.5MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 16MHz
Max DC Current 100mA
DC Resistance (DCR) 3.4Ohm Max
Test Frequency 2.5MHz
Inductance 22μH
Lead Pitch 25.4mm
Military Standard Not
Current Rating 100mA
Construction Conformal Coated
Number of Functions 1
Shielding NO
Packing Method Ammo Pack
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.100Diax0.160L 2.54mmx4.06mm
Series 79F
Published 2006
Packaging Tape & Box (TB)
Operating Temperature -55°C~105°C
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
