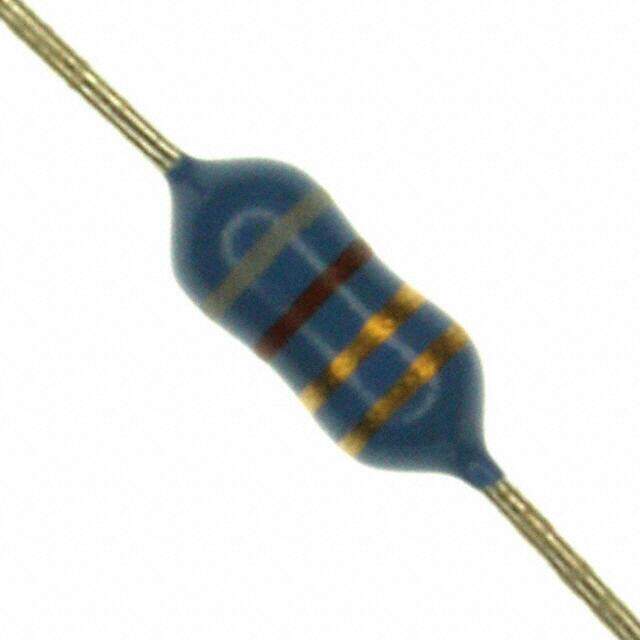

78F8R2J-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 78F Axial 0.110Diax0.280L 2.79mmx7.11mm 8.2muH
PDF
/
Buying Options
Total Price: USD $0.17
Unit Price: USD $0.1672
≥1 USD $0.1672
≥10 USD $0.13464
≥100 USD $0.124608
≥500 USD $0.114224
≥1000 USD $0.10076
≥3000 USD $0.097645
Inventory: 59798
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height 7.11mm
Diameter 2.79mm

Technical

DC Current 425mA
Inductance Tolerance 5%
Q Factor 40
Quality Factor-Min (at L-nom) 40
Q @ Freq 40 @ 7.9MHz
Inductor Application DC-DC CONVERTER
Frequency - Self Resonant 20MHz
Max DC Current 425mA
DC Resistance (DCR) 550mOhm Max
Test Frequency 7.9MHz
Inductance 8.2μH
Lead Diameter 510 μm
Military Standard Not
Current Rating 425mA
Construction Conformal Coated
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.110Diax0.280L 2.79mmx7.11mm
Series 78F
Published 2002
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Axial
Mounting Type Through Hole
Mount Axial, Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 16 Weeks
