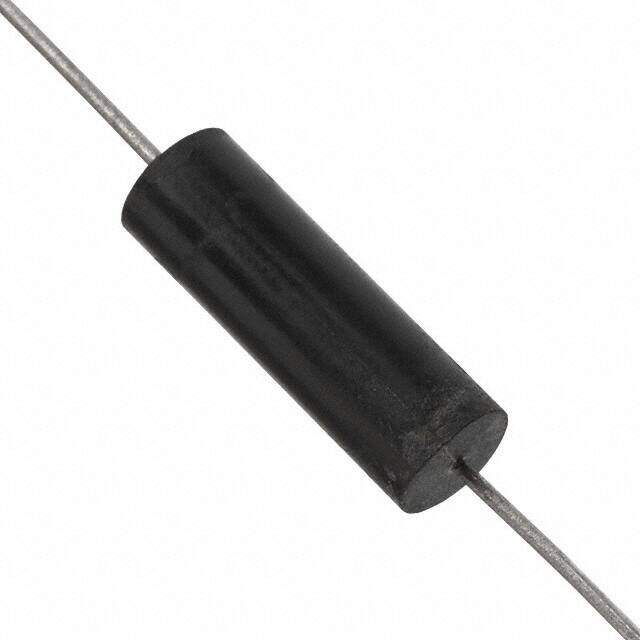

2474R-12L
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Molded Active Lead Free Fixed Inductor -55C~125C 1kHz 28mOhm Max 8.2muH
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0656
≥1 USD $4.0656
≥10 USD $3.2956
≥100 USD $2.929696
≥500 USD $2.865456
Inventory: 641
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 30 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series 2474R
Size / Dimension 0.240Diax0.740L 6.10mmx18.80mm
Tolerance ±15%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Molded
Terminal Finish Tin/Copper (Sn99.3Cu0.7)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Construction Epoxy Encapsulated
Current Rating 3.55A
Lead Length 36.6mm
Inductance 8.2μH
Test Frequency 1kHz
DC Resistance (DCR) 28mOhm Max
Max DC Current 3.55A
Inductor Application POWER INDUCTOR
Current - Saturation 2.2A
Dimensions
Diameter 6.1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
